3.4.3　采用Webhook自动注入Istio Sidecar

Istio就是充分利用了Kubernets Webhook机制来实现Envoy Proxy Sidecar的自动注入。

首先，创建Sidecar注入的配置项istio-sidecar-injector，如下所示：

kubectl describe configmap istio-sidecar-injector -n istio-system
Name:         istio-sidecar-injector
Namespace:    istio-system
Labels:       app=ack-istio
              chart=ack-istio-1.0.0
              heritage=Tiller
              istio=sidecar-injector
              release=myistio
Annotations:  <none>

Data
====
config:
----
policy: enabled
template: |-
  initContainers:
  - name: istio-init
    image: "registry.cn-hangzhou.aliyuncs.com/aliacs-app-catalog/proxy_init:1.0.0"
    args:
    ......
    imagePullPolicy: IfNotPresent
    securityContext:
      capabilities:
        add:
        - NET_ADMIN
      privileged: true
    restartPolicy: Always

  containers:
  - name: istio-proxy
    image: [[ if (isset .ObjectMeta.Annotations "sidecar.istio.io/proxyImage") -]]
    ......

可以看到该Conf igMap保存了默认注入策略（policy）和Sidecar注入模板（template）。

策略参数如下所示：

·disabled：Sidecar注入器默认不会注入pod中。pod模板定义中的注解sidecar.istio.io/inject值为true，会启用注入功能。

·enabled：Sidecar注入器默认会注入pod中。pod模板定义中的注解sidecar.istio.io/inject值为false，会禁止注入功能。

部署Sidecar注入的Webhook，如下所示：

mutatingwebhook.yaml:
apiVersion: admissionregistration.k8s.io/v1beta1
kind: MutatingWebhookConfiguration
metadata:
  name: istio-sidecar-injector
  namespace: {{ .Release.Namespace }}
  labels:
    app: istio-sidecar-injector
    chart: {{ .Chart.Name }}-{{ .Chart.Version | replace "+" "_" }}
    release: {{ .Release.Name }}
    heritage: {{ .Release.Service }}
webhooks:
  - name: sidecar-injector.istio.io
    clientConfig:
      service:
        name: istio-sidecar-injector
        namespace: {{ .Release.Namespace }}
        path: "/inject"
      caBundle: ""
    rules:
      - operations: [ "CREATE" ]
        apiGroups: [""]
        apiVersions: ["v1"]
        resources: ["pods"]
    failurePolicy: Fail
    namespaceSelector:
{{- if .Values.enableNamespacesByDefault }}
      matchExpressions:
      - key: istio-injection
        operator: NotIn
        values:
        - disabled
{{- else }}
      matchLabels:
        istio-injection: enabled
{{- end }}

需要注意，如果enableNamespacesByDefault设置为true时，会根据命名空间选择器的匹配规则来决定是否默认启用Sidecar自动注入，即istio-injection不为disabled；反之，如果enableNamespacesByDefault设置为false时，只有命令空间中设置了标签istio-injection并且值为enabled，才会启用Sidecar自动注入。

可以查看部署好的istio-sidecar-injector容器，如图3-9所示，其对应部署的YAML定义如下：

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: istio-sidecar-injector
  namespace: {{ .Release.Namespace }}
  labels:
    app: {{ template "sidecar-injector.name" . }}
    chart: {{ .Chart.Name }}-{{ .Chart.Version | replace "+" "_" }}
    release: {{ .Release.Name }}
    heritage: {{ .Release.Service }}
    istio: sidecar-injector
spec:
  replicas: {{ .Values.replicaCount }}
  template:
    metadata:
      labels:
        istio: sidecar-injector
    spec:
      serviceAccountName: istio-sidecar-injector-service-account
      containers:
        - name: sidecar-injector-webhook
          image: "{{ .Values.global.hub }}/{{ .Values.image }}:{{ .Values.global.tag }}"
          imagePullPolicy: {{ .Values.global.imagePullPolicy }}
          args:
            - --caCertFile=/etc/istio/certs/root-cert.pem
            - --tlsCertFile=/etc/istio/certs/cert-chain.pem
            - --tlsKeyFile=/etc/istio/certs/key.pem
            - --injectConfig=/etc/istio/inject/config
            - --meshConfig=/etc/istio/config/mesh
            - --healthCheckInterval=2s
            - --healthCheckFile=/health

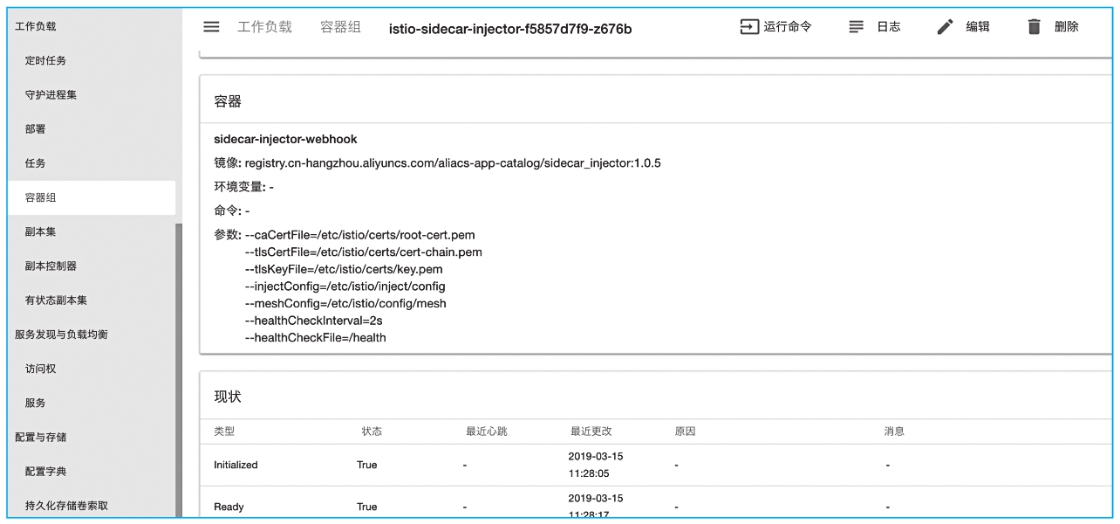

图3-9　启用Sidecar注入服务
